XSplit Broadcaster Software Manual

Multitrack Audio

Manual > Record > Multitrack Audio

Multitrack Audio allows you to separate your recording's audio into four discrete tracks; Mixed, Microphone, System Sound, and Stream Only. This will give you the flexibility to edit tracks individually during post-production as well as allow you to switch between audio tracks when using media players that support it.

Enabling Multitrack Audio for Local Recordings

  1. Go to Record, then click the gear icon next to Local Recording to open its properties window.

  2. Enable the Create multitrack recording of microphone and system audio option.

Enabling Multitrack Audio for Stream Recordings

  1. Click the gear icon next to one of your Broadcast outputs to open its properties window.

  2. Enable the Create multitrack recording of microphone and system audio option.


    Automatically save recording on local drive has to be enabled to create stream recordings.

Audio Tracks

Mixed

The combined audio track from all sound sources. This includes audio from the system sound, microphones and even sources set to output to Stream Only.

System Sound

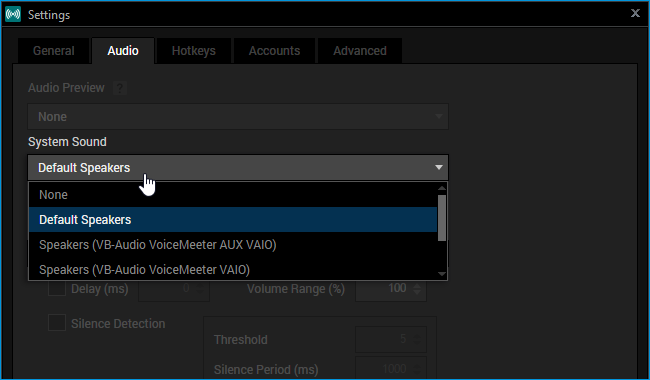

Audio captured from the System Sound device set in your Audio settings.
Devices listed here will be from your Windows Playback Devices. These include speakers, headphones, Line Out, etc.

Microphone

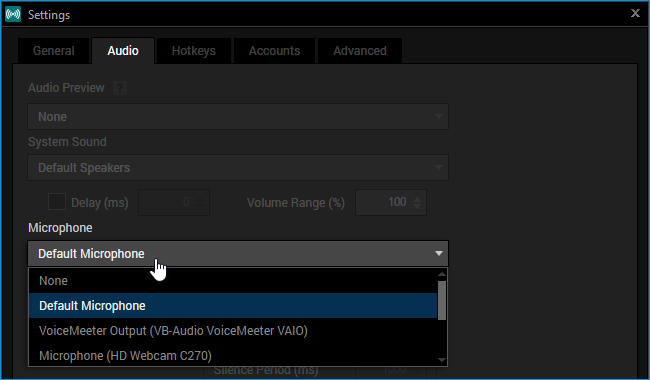

Audio captured from the Microphone device set in your Audio settings.
Devices listed here will be from your Windows Recording Devices. These include microphones, USB mixers, Line In, etc.

Stream Only

Audio from sources with their Audio Output set to Stream Only.

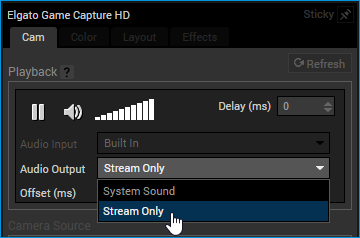

A source's audio output is set to System Sound by default. You can change this setting by right-clicking on your source to bring up its properties window, then clicking the Audio Output drop-down underneath Playback.


By setting a source's audio output to Stream Only, their sound will be routed directly to the recording or stream.
